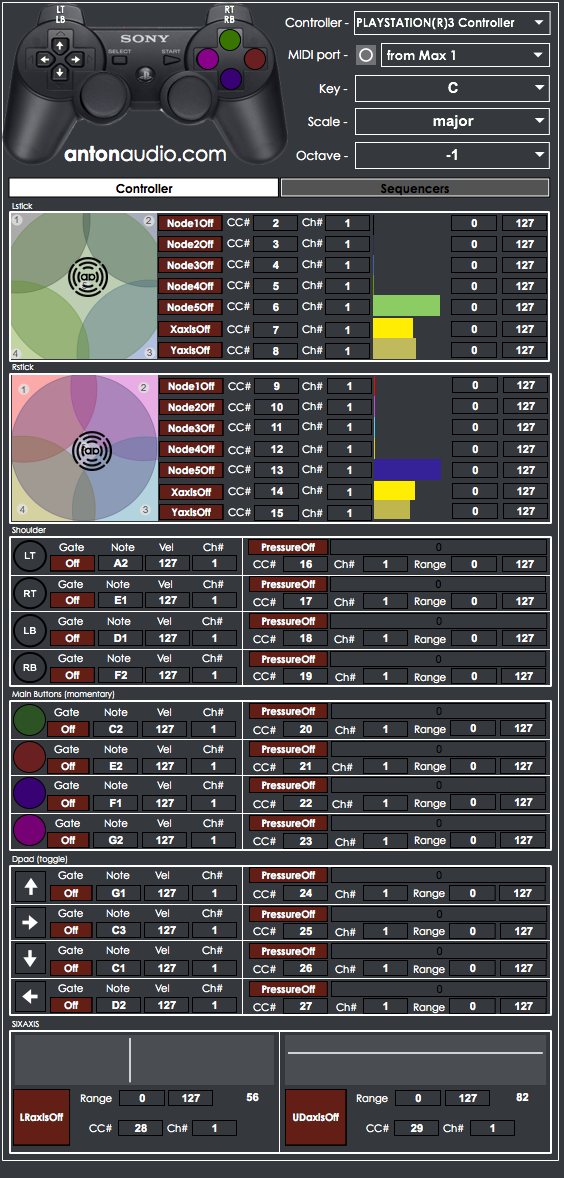

Application Sectional Breakdown:



Section 1: Master control section - animated control pad

1 - select your PLAYSTATION(R)3 Controller here

2 - select a MIDI port to output to

3 - select a root Key for assigning notes to buttons (assigned randomly across all buttons)

4 - select a scale that all notes will fit in

5 - select an Octave range

6 - Tab used to select Controller assignment page or Sequencers page


Section 2: Lstick nodes area has 5 adjustable node spheres and XY parameters


1 - toggle node and XY sends. adjust node sphere positions and sizes if desired

2 - select CC value and Channel #

3 - scale range of CC outputs if desired

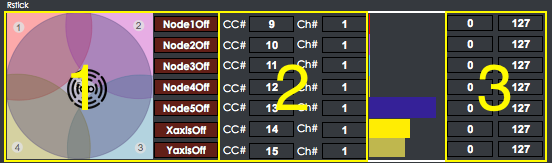

Section 3: Rstick nodes area has 5 adjustable node spheres and XY parameters

1 - toggle node and XY sends. adjust node sphere positions and sizes if desired

2 - select CC value and Channel #

3 - scale range of CC outputs if desired


Section 4: Shoulder buttons (LT, RT, LB, RB) assignments

1 - toggle Note sends, select notes, modify velocity, select channel #

2 - toggle pressure/aftertouch sends, select CC value, select Channel #, modify output range

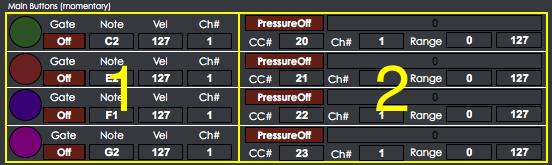

Section 5: Main buttons (Circle, Triangle, Square, X) assignments (Momentary action)

1 - toggle Note sends, select notes, modify velocity, select channel #

2 - toggle pressure/aftertouch sends, select CC value, select Channel #, modify output range


Section 6: Dpad buttons (Up, Down, Left, Right) assignments (Toggle action)

1 - toggle Note sends, select notes, modify velocity, select channel #

2 - toggle pressure/aftertouch sends, select CC value, select Channel #, modify output range


Section 7: SIXAXIS pitch and yaw assignments

1 - toggle Left/Right tilt motion send, select CC value, channel # and range output

2 - toggle Up/Down tilt motion send, select CC value, channel # and range output


Section 8: Sequencers Tab master section

1 - Same setting as Section 1 with be applied for sequencers tab

2 - Same setting as Section 1 with be applied for sequencers tab

3 - Transport area for Sequencers Tab. Transport must be on for sequencers to run. Adjustable Tempo

4 - Tab used to select Controller assignment page or Sequencers page


Section 9: Sequencers Page

1 - Toggle button for activating sequencer #1 (assigned to select button)

2 - Toggle buttons for sending Note messages, Extra1 and Extra2 values. MIDI CC# and Ch# are also selectable

3 - Main sequencer edit area: zoom range, loop length range, note edit, velocity edit, extra1 and extra2 parameter edit

4 - Display, Direction, Beat Division, # of steps and Fold options

5 - Some random, Sorting and SetAll sequencer settings

6 - Sequencer #2

7 - Sequencer #3


Section 10: Left and Right stick click functionality

1 - LeftStick Click - Send a random CC value of a selectable range

2 - RightStick Click - Send a random CC value of a selectable range
